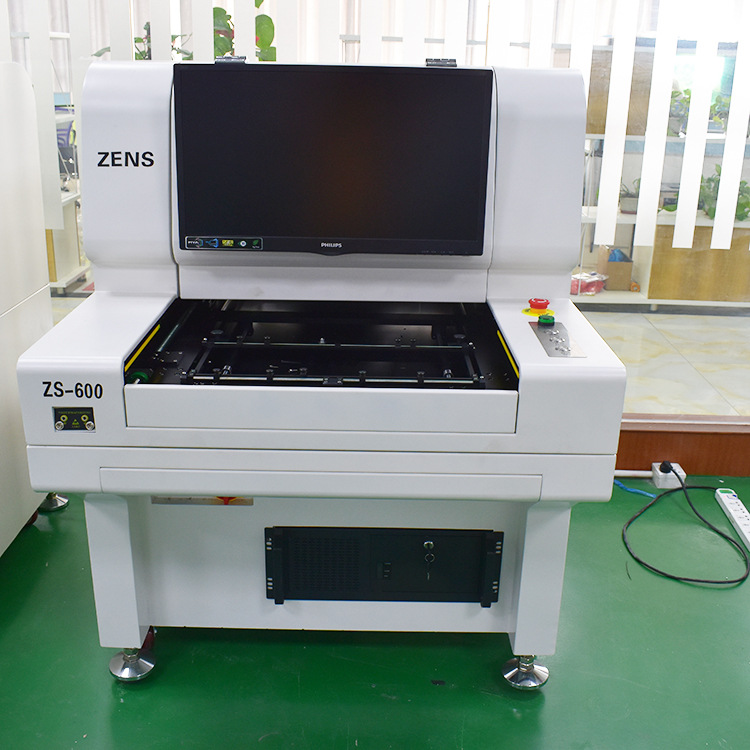

离线AOI光学检测仪ZS-600
|
适用制程Applicable process |
SMT锡膏印刷后，回流焊前及回流焊后 |
SMT solder paste printing, |
|
检测方法Test method |
彩色图像学习、统计分析、字符自动识别（OCR）、颜色距离分析、IC桥接分析、黑白比重分析、亮度分析、相似度分析。 |
Color images learming、Statistical analysis、Automatic character recognition (OCR)、Color distance analysis、IC bridge analysis、Black and white and the hydrometer analysis、Brightness analysis、Similarity analysis. |
|
摄像系统Image pickup system |
彩色CCD智能数字相机 |
Color CCD intelligent digital camera |
|
分辨率Resolution |
20μm、15μm、10μm |
20μm、15μm、10μm |
|
照明系统Illuminating system |
环形塔状高亮度三色LED照明 |
（R.G.B)Circular tower shaped high brightness LED lighting three color（R.G.B) |
|
编程方法Programming method |
快速手动编程，CAD坐标自动搜索元件库导入 |
Fast promgamming、CAD coordinates auto search compoment library |
|
检查项目Inspection Items |
锡膏印刷：有、无、偏斜、少锡、多锡、短路、污染 元件检查：缺件，偏移，歪斜，立碑，侧立，翻件，极性反，错件，破损，AI元件弯曲等 焊点检查：锡多，锡少，连锡，锡珠，铜箔污染，波峰焊插件焊点检查 |
The printing: yes、no,、skewed, little tin、and short circuit、pollution Components inspection: missing parts、 migration、skewed、made up、turn piece、side against、wrong thing、polarity、damaged、AI component bends. Solder joint inspection:tin much、tin tin tin、even less pollution、ul bead、soldering plugin solder joints inspection. |
|
小元件测试Minimum component test |
01005chip、0.25pitchIC |
01005chip、0.25pitchIC |
|
SPC统计系统SPC statistical system |
记录测试数据进行统计分析，Excel输出格式查看生产品质情况 |
Record test data of statistical analysis,Excel output format check production quality |
|
条码系统Barcode system |
相机自动识别 |
Camera automatically identify |
|
操作系统Operating system |
Windows XP,Windows 7 |
Windows XP,Windows 7 |
|
远程控制Remote control |
使用网络远程操作、简便快捷修改程序及排除故障 |
Using the network remote operation、simple and rapid modify the program and trouble-shooting |
|
测试结果Test results |
通过22英寸液晶显示器显示NG具体位置 |
24 inch LCD display through physical location. NG |
机械系统参数Mechanical system parameters
|
PCB尺寸/PCB size |
25×25mm～360×450mm |
|
|
PCB厚度/ PCB thickness |
0.3～6mm |
|
|
PCB弯曲度/ PCB bending degree |
＜3mm |
|
|
PCB上下净高/PCB Height |
上方≤40mm，下方≤60mm |
|
|
PCB固定方式/PCB Fixed way |
压紧和张开自动夹具 |
Compaction and open automatic fixtures |
|
X/Y驱动系统/X/Y drive system |
AC伺服马达驱动和丝杆 |
AC servo motor drive |
|
定位精度/Positioning accuracy |
＜10μm |
|
|
电源/Power Supply |
AC 22OV±10% 50/60Hz 1KW |
|
|
环境温度/Environment temperature |
10～40℃ |
|
|
环境湿度/Environment humidity |
10～80%RH(无凝霜） |
|
|
设备重量/Weight |
450KG |
|
|
外形尺寸/Dimension |
1100×930×1380mm |
|
